transportmoment: Instance-to-Instance Comparison Results

Type: Instance
Submitter: G. Gamrath
Description: Transport momentum maximization in a capacitated gas network, cycles are forbidden by pseudo pressures. Solved by Gurobi 4.6.1 (12 threads) in 30 seconds (January 2012).
MIPLIB Entry

Parent Instance (transportmoment)

All other instances below were be compared against this "query" instance.

transportmoment Raw transportmoment Decomposed transportmoment Composite of MIC top 5 transportmoment Composite of MIPLIB top 5 transportmoment Model Group Composite
Raw This is the CCM image before the decomposition procedure has been applied.
Decomposed This is the CCM image after a decomposition procedure has been applied. This is the image used by the MIC's image-based comparisons for this query instance.

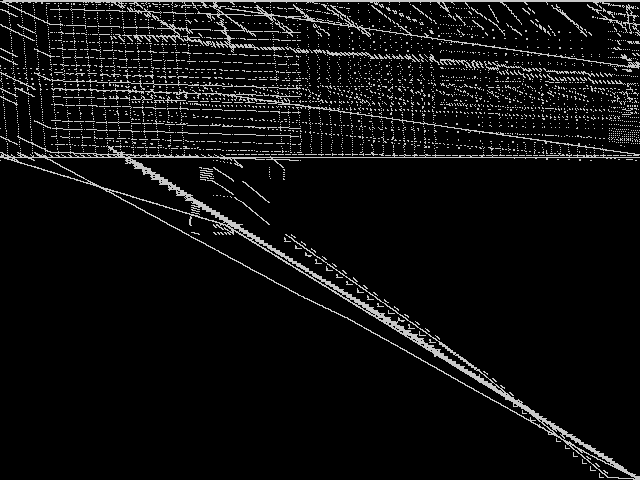

Composite of MIC Top 5 Composite of the five decomposed CCM images from the MIC Top 5.

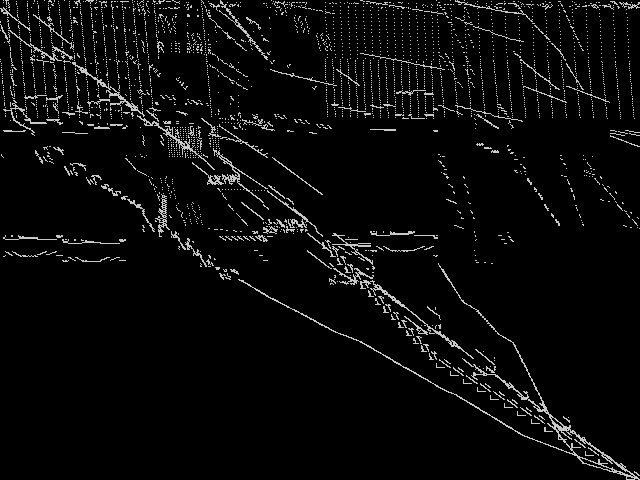

Composite of MIPLIB Top 5 Composite of the five decomposed CCM images from the MIPLIB Top 5.
Model Group Composite Image Composite of the decomposed CCM images for every instance in the same model group as this query.

MIC Top 5 Instances

These are the 5 decomposed CCM images that are most similar to decomposed CCM image for the the query instance, according to the ISS metric.

Decomposed These decomposed images were created by GCG.
neos-935769 decomposed fhnw-binschedule1 decomposed pb-grow22 decomposed neos-983171 decomposed a1c1s1 decomposed
Name neos-935769 [MIPLIB] fhnw-binschedule1 [MIPLIB] pb-grow22 [MIPLIB] neos-983171 [MIPLIB] a1c1s1 [MIPLIB]
Rank / ISS The image-based structural similarity (ISS) metric measures the Euclidean distance between the image-based feature vectors for the query instance and all other instances. A smaller ISS value indicates greater similarity.
1 / 0.961 2 / 0.984 3 / 1.018 4 / 1.024 5 / 1.030
Raw These images represent the CCM images in their raw forms (before any decomposition was applied) for the MIC top 5.
neos-935769 raw fhnw-binschedule1 raw pb-grow22 raw neos-983171 raw a1c1s1 raw

MIPLIB Top 5 Instances

These are the 5 instances that are most closely related to the query instance, according to the instance statistic-based similarity measure employed by MIPLIB 2017

Decomposed These decomposed images were created by GCG.
b2c1s1 decomposed dsbmip decomposed neos-5078479-escaut decomposed maxgasflow decomposed b1c1s1 decomposed
Name b2c1s1 [MIPLIB] dsbmip [MIPLIB] neos-5078479-escaut [MIPLIB] maxgasflow [MIPLIB] b1c1s1* [MIPLIB]
Rank / ISS The image-based structural similarity (ISS) metric measures the Euclidean distance between the image-based feature vectors for the query instance and all model groups. A smaller ISS value indicates greater similarity.
72 / 1.263 134 / 1.334 139 / 1.336 369 / 1.542 72* / 1.263*
Raw These images represent the CCM images in their raw forms (before any decomposition was applied) for the MIPLIB top 5.
b2c1s1 raw dsbmip raw neos-5078479-escaut raw maxgasflow raw b1c1s1 raw

Instance Summary

The table below contains summary information for transportmoment, the five most similar instances to transportmoment according to the MIC, and the five most similar instances to transportmoment according to MIPLIB 2017.

INSTANCE SUBMITTER DESCRIPTION ISS RANK
Parent Instance transportmoment [MIPLIB] G. Gamrath Transport momentum maximization in a capacitated gas network, cycles are forbidden by pseudo pressures. Solved by Gurobi 4.6.1 (12 threads) in 30 seconds (January 2012). 0.000000 -
MIC Top 5 neos-935769 [MIPLIB] NEOS Server Submission Instance coming from the NEOS Server with unknown application 0.961164 1
fhnw-binschedule1 [MIPLIB] Simon Felix Scheduling/assignment for an industrial production pipeline 0.983730 2
pb-grow22 [MIPLIB] Gleb Belov These are the instances from MiniZinc Challenges 2012-2016 (see www.minizinc.org), compiled for MIP WITH INDICATOR CONSTRAINTS using the develop branch of MiniZinc and CPLEX 12.7.1 on 30 April 2017. Thus, these instances can only be handled by solvers accepting indicator constraints. For instances compiled with big-M/domain decomposition only, see my previous submission to MIPLIB.To recompile, create a directory MODELS, a list lst12_16.txt of the instances with full paths to mzn/dzn files of each instance per line, and say$> ~/install/libmzn/tests/benchmarking/mzn-test.py -l ../lst12_16.txt -slvPrf MZN-CPLEX -debug 1 -addOption "-timeout 3 -D fIndConstr=true -D fMIPdomains=false" -useJoinedName "-writeModel MODELS_IND/%s.mps" Alternatively, you can compile individual instance as follows: $> mzn-cplex -v -s -G linear -output-time ../challenge_2012_2016/mznc2016_probs/zephyrus/zephyrus.mzn ../challenge_2012_2016/mznc2016_p/zephyrus/14__8__6__3.dzn -a -timeout 3 -D fIndConstr=true -D fMIPdomains=false -writeModel MODELS_IND/challenge_2012_2016mznc2016_probszephyruszephyrusmzn-challenge_2012_2016mznc2016_probszephyrus14__8__6__3dzn.mps 1.017514 3
neos-983171 [MIPLIB] NEOS Server Submission Imported from the MIPLIB2010 submissions. 1.024014 4
a1c1s1 [MIPLIB] M. Vyve, Y. Pochet Lot sizing instance. Alkis Vazacopoulos reports solving this instance using XPRESS 2006B. 1.029892 5
MIPLIB Top 5 b2c1s1 [MIPLIB] M. Vyve, Y. Pochet Lot sizing instance. Solved by Gurobi 4.6.1 (12 threads) in 116575 seconds (January 2012). 1.263345 72
dsbmip [MIPLIB] MIPLIB submission pool Imported from the MIPLIB2010 submissions. 1.333933 134
neos-5078479-escaut [MIPLIB] Jeff Linderoth (None provided) 1.335661 139
maxgasflow [MIPLIB] G. Gamrath Transport momentum maximization in a capacitated gas network, allowing cycles. Solved by Gurobi 5.0 in 2882 seconds (May 2012). 1.541551 369
b1c1s1* [MIPLIB] M. Vyve, Y. Pochet Lot sizing instance. 1.263345* 72*


transportmoment: Instance-to-Model Comparison Results

Model Group Assignment from MIPLIB: no model group assignment
Assigned Model Group Rank/ISS in the MIC: N.A. / N.A.

MIC Top 5 Model Groups

These are the 5 model group composite (MGC) images that are most similar to the decomposed CCM image for the query instance, according to the ISS metric.

These are model group composite (MGC) images for the MIC top 5 model groups.
Model group: neos-pseudoapplication-1 Model group: neos-pseudoapplication-97 Model group: neos-pseudoapplication-7 Model group: neos-pseudoapplication-63 Model group: c1s1
Name neos-pseudoapplication-1 neos-pseudoapplication-97 neos-pseudoapplication-7 neos-pseudoapplication-63 c1s1
Rank / ISS The image-based structural similarity (ISS) metric measures the Euclidean distance between the image-based feature vectors for the query instance and all other instances. A smaller ISS value indicates greater similarity.
1 / 1.511 2 / 1.562 3 / 1.626 4 / 1.627 5 / 1.634

Model Group Summary

The table below contains summary information for the five most similar model groups to transportmoment according to the MIC.

MODEL GROUP SUBMITTER DESCRIPTION ISS RANK
MIC Top 5 neos-pseudoapplication-1 NEOS Server Submission Imported from the MIPLIB2010 submissions. 1.510900 1
neos-pseudoapplication-97 Jeff Linderoth (None provided) 1.562430 2
neos-pseudoapplication-7 Jeff Linderoth (None provided) 1.626306 3
neos-pseudoapplication-63 Jeff Linderoth (None provided) 1.627244 4
c1s1 M. Vyve, Y. Pochet Lot sizing model. 1.633898 5


* b1c1s1 is a duplicate of b2c1s1.
