Instance - neos-860300

neos-860300: Instance-to-Instance Comparison Results

Type:	Instance
Submitter:	NEOS Server Submission
Description:	Imported from the MIPLIB2010 submissions.
	MIPLIB Entry


	Raw This is the CCM image before the decomposition procedure has been applied.	Decomposed This is the CCM image after a decomposition procedure has been applied. This is the image used by the MIC's image-based comparisons for this query instance.	Composite of MIC Top 5 Composite of the five decomposed CCM images from the MIC Top 5.	Composite of MIPLIB Top 5 Composite of the five decomposed CCM images from the MIPLIB Top 5.	Model Group Composite Image Composite of the decomposed CCM images for every instance in the same model group as this query.

Decomposed These decomposed images were created by GCG.
Name	neos-4760493-puerua [MIPLIB]	supportcase6 [MIPLIB]	queens-30 [MIPLIB]	neos-5013590-toitoi [MIPLIB]	t1717 [MIPLIB]
Rank / ISS The image-based structural similarity (ISS) metric measures the Euclidean distance between the image-based feature vectors for the query instance and all other instances. A smaller ISS value indicates greater similarity.	1 / 1.019	2 / 1.083	3 / 1.151	4 / 1.189	5 / 1.192
Raw These images represent the CCM images in their raw forms (before any decomposition was applied) for the MIC top 5.

Decomposed These decomposed images were created by GCG.
Name	misc07 [MIPLIB]	neos-3216931-puriri [MIPLIB]	neos-3214367-sovi [MIPLIB]	nursesched-medium04 [MIPLIB]	nursesched-sprint02 [MIPLIB]
Rank / ISS The image-based structural similarity (ISS) metric measures the Euclidean distance between the image-based feature vectors for the query instance and all model groups. A smaller ISS value indicates greater similarity.	128 / 2.462	133 / 2.485	137 / 2.543	164 / 2.688	183 / 2.749

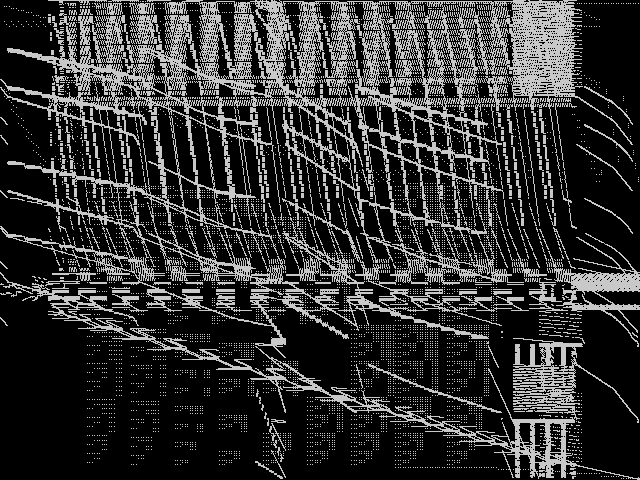

Raw These images represent the CCM images in their raw forms (before any decomposition was applied) for the MIPLIB top 5.

Instance Summary

The table below contains summary information for neos-860300, the five most similar instances to neos-860300 according to the MIC, and the five most similar instances to neos-860300 according to MIPLIB 2017.

	INSTANCE	SUBMITTER	DESCRIPTION	ISS	RANK
Parent Instance	neos-860300 [MIPLIB]	NEOS Server Submission	Imported from the MIPLIB2010 submissions.	0.000000	-
MIC Top 5	neos-4760493-puerua [MIPLIB]	Hans Mittelmann	Collection of anonymous submissions to the NEOS Server for Optimization	1.019471	1
	supportcase6 [MIPLIB]	Michael Winkler	MIP instances collected from Gurobi forum with unknown application	1.083332	2
	queens-30 [MIPLIB]	Ashutosh Mahajan	Models the problem of placing as many queens on a 30 by 30 chess board as possible so that each queen threatens at most one other queen.	1.151302	3
	neos-5013590-toitoi [MIPLIB]	Hans Mittelmann	additional files should be Gurobi output and solution and submitter	1.189331	4
	t1717 [MIPLIB]	R. Borndörfer	Vehicle scheduling set partitioning problem from Berlin's Telebus handicapped people's transportation system	1.191606	5
MIPLIB Top 5	misc07 [MIPLIB]	MIPLIB submission pool	Imported from the MIPLIB2010 submissions.	2.461876	128
	neos-3216931-puriri [MIPLIB]	Jeff Linderoth	(None provided)	2.485123	133
	neos-3214367-sovi [MIPLIB]	Jeff Linderoth	Solved in 21 days with four restarted runs of ParaXpress.	2.543346	137
	nursesched-medium04 [MIPLIB]	Haroldo Gambini Santos	Nurse Scheduling Problems from the First International Nurse Rostering Competition - INRC 2010	2.687548	164
	nursesched-sprint02 [MIPLIB]	Haroldo Gambini Santos	Nurse Scheduling Problems from the First International Nurse Rostering Competition - INRC 2010	2.748701	183

neos-860300: Instance-to-Model Comparison Results

Model Group Assignment from MIPLIB:	neos-pseudoapplication-23
Assigned Model Group Rank/ISS in the MIC:	1 / 0.632

These are model group composite (MGC) images for the MIC top 5 model groups.
Name	neos-pseudoapplication-23	iis	air	neos-pseudoapplication-106	2hopcds
Rank / ISS The image-based structural similarity (ISS) metric measures the Euclidean distance between the image-based feature vectors for the query instance and all other instances. A smaller ISS value indicates greater similarity.	1 / 0.633	2 / 1.315	3 / 1.343	4 / 1.437	5 / 1.498

Model Group Summary

The table below contains summary information for the five most similar model groups to neos-860300 according to the MIC.

	MODEL GROUP	SUBMITTER	DESCRIPTION	ISS	RANK
MIC Top 5	neos-pseudoapplication-23	NEOS Server Submission	Imported from the MIPLIB2010 submissions.	0.632782	1
	iis	Marc Pfetsch	23 "middlehard" Set-Covering Models for MIPLIB: they have a small number of variables compared to the number of constraints and CPLEX 12.1 needs about one hour to solve them.For more information, have a look into the readme file which explains how the models can be created.	1.315041	2
	air	G. Astfalk	Airline crew scheduling set partitioning problem	1.343135	3
	neos-pseudoapplication-106	Hans Mittelmann	Collection of anonymous submissions to the NEOS Server for Optimization	1.436550	4
	2hopcds	Austin Buchanan	A problem in wireless networks. The objective is to select a minimum number of relay nodes so that any two nonadjacent nodes can communicate by way of the chosen relay nodes in at most s hops, where s is a problem input. The 2-hop case of this problem can be formulated as a set cover/hitting set problem with n binary variables and n^2 constraints: _{ k N(i) N(j) } x_k 1 for nonadjacent node pairs {i,j}. Despite the formulation's simplicity, models with as few as 120 variables are left unsolved after one hour using Gurobi 7.0.2.	1.497737	5
